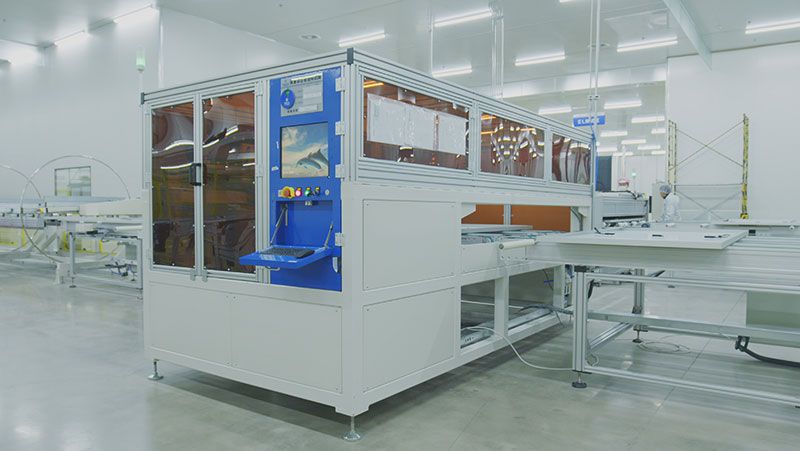

Auto Labelling Machine

Used for automatic application of labels during PV module manufacturing

  • Auto Labelling Machine
  • Auto Labelling Machine
Request a Quote
Technical Parameters
Item Parameters
Panel type Solar panels
Panel size (1,680-2,650)*(992-1,500)mm
Cycle time 20s
Panel positioning accuracy ±0.5mm
Alignment mode Cylinder
Labelling accuracy ±0.5mm
Breakage rate ≤0.01%
Utilization rate ≥99%
Overall dimensions (L*W*H) 3,930*2,030*1,800mm
Voltage 380V 10A
Power 3kW
Air pressure 0.8MPa
Features

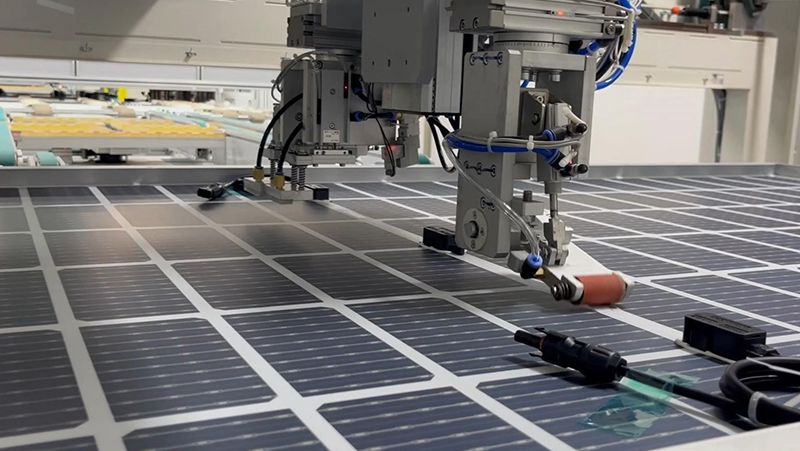

  • Equipped with 2-3 working heads for accurately labeling tags, anti-counterfeiting codes and barcodes;
  • The labelling machine uses the information interaction between automatic code scanning and the MES system to drive label printing and realize the 100% successful scanning rate;
  • Full stroke labeling of high speed and precision, qualified labeling≥99%.
Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
Related Products
Get in Touch
PV Manufacturing Equipment
You may be interested in

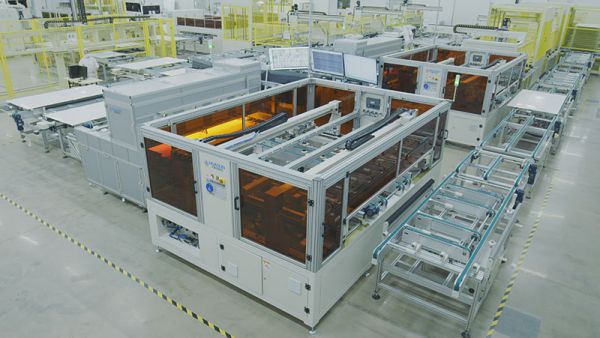

    1. Auto Edge Taping Machine
    2. Auto Edge Taping Machine An automatic edge taping machine is used for automatic tape edge banding of dual-glass solar modules, adapting to different specifications of tapes. Discover more

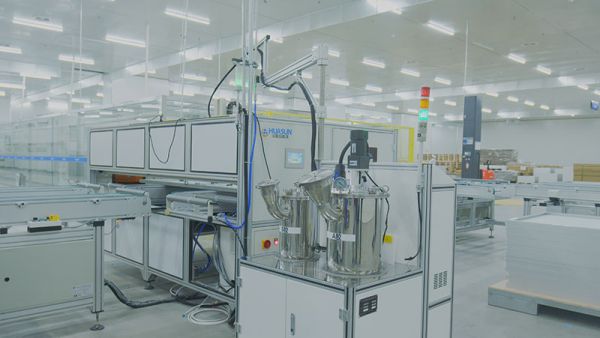

    1. Auto J-Box Potting Machine
    2. Auto J-Box Potting Machine An automatic J-box potting machine is composed of conveying, positioning and potting systems. The potting machine is used for automatic glue potting of PV junction boxes. Discover more

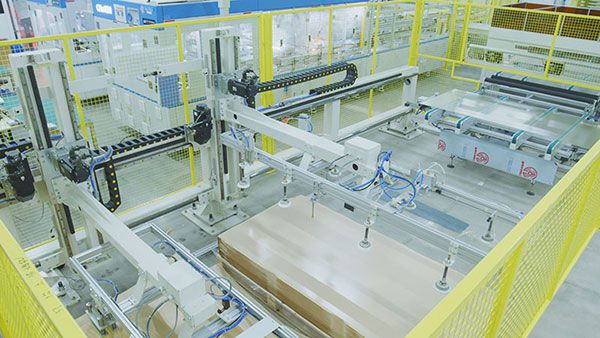

    1. Automatic Glass Loading Machine
    2. Automatic Glass Loading Machine An automatic glass loading machine works to supply glass rapidly by automatically load, position and transport glass. The loading machine adopts multiple innovative technologies to ensure the operation stability and continuity.Discover more

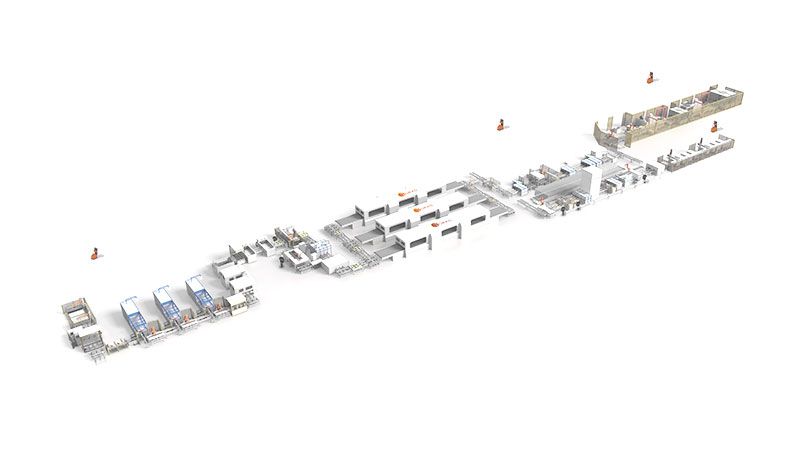

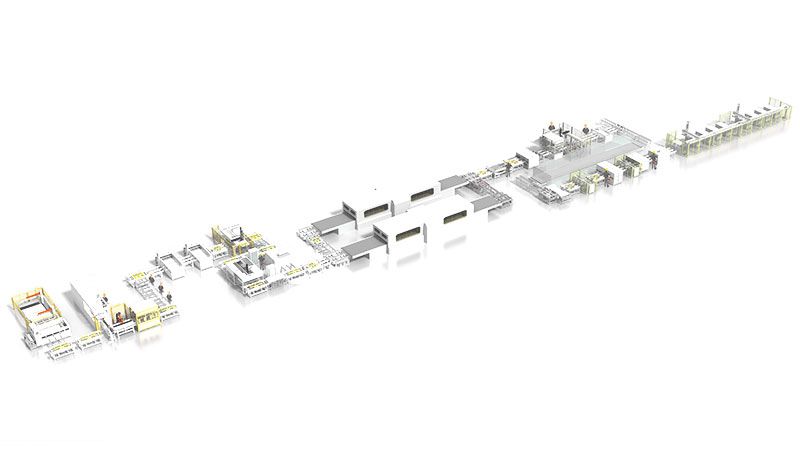

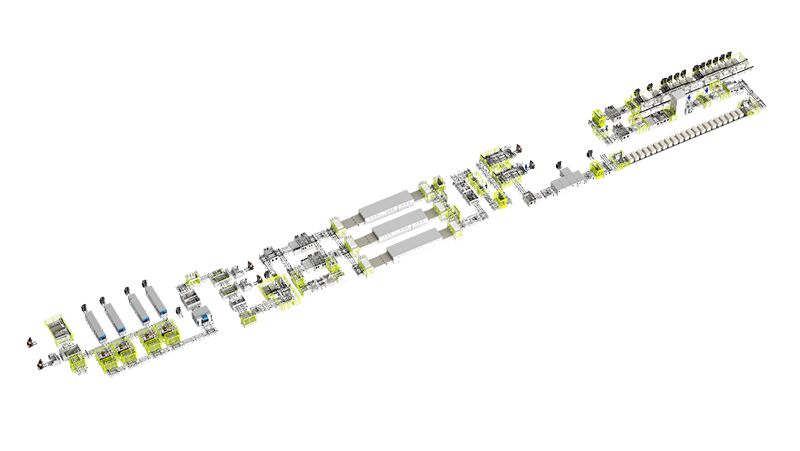

Three types of solar panel lines are available
