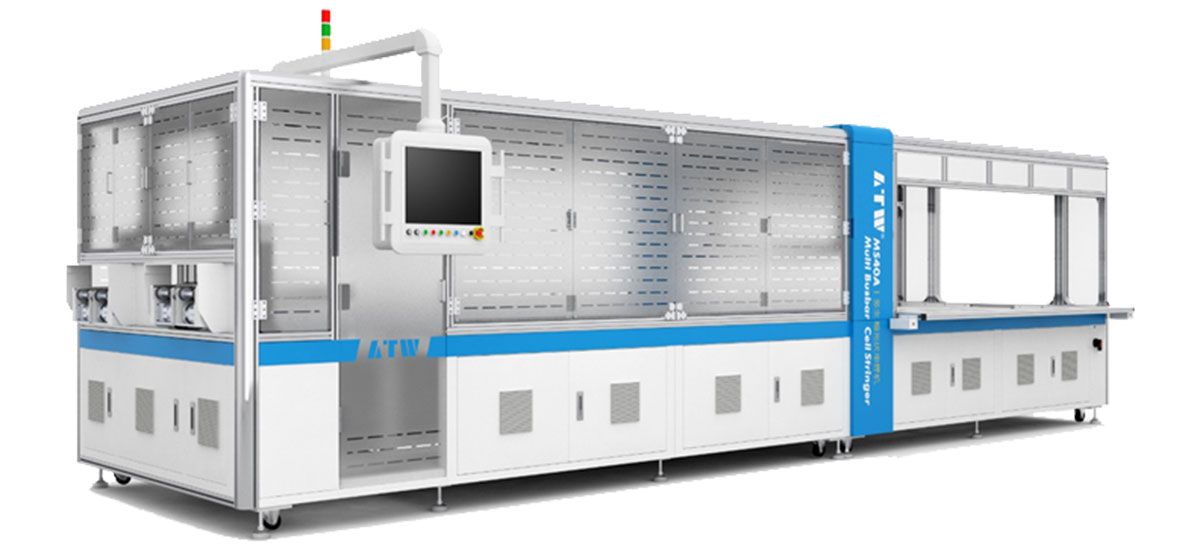

MBB Cell Stringer Machine, AM050F

Used for automatic multi busbar PV cell soldering

MBB Cell Stringer Machine, AM050F

MBB cell stringer machine of AM050F is a crystalline silicon solar cell string production machine combining functions of soldering and lossless cutting. The cell stringer can be applied to 3BB-16BB cells of 161-230mm. The cutting mechanism can cut half and 1/3 cells without material loss, and the soldering mechanism can be repurposed to produce 1/3, half and full cells of 161-230mm. The stringer machine adopts advanced automation technologies in terms of PLC, servo motor, four-axis industrial robot and machine vision to realize automatic production of cell strings.

Request a Quote
Technical Parameters
Item Parameters
Normal cell MBB cell
Basics Utilization rate ≥ 95%
Production capacity 18Xmm cell: 3BB-12BB >6,800 half cells/h 18Xmm cell: 13BB-16BB >6,400 half cells/h 230mm cell: 3BB-12BB >6,800 half cells or 1/3 cells/h
230mm cell: 13BB-16BB >6,400 half cells or 1/3 cells/h
Breakage rate 140-150mm monocrystalline silicon cell: ≤0.4% 151-170mm monocrystalline silicon cell: ≤0.3%
171-230mm monocrystalline silicon cell: ≤0.2%
Average laser power 50 W/300W
Laser warranty 20,000h
Testing CCD
Deviation Positioning ±0.05mm Angle±0.04° Cutting±0.1mm
Laser grooving length < 1.5mm
Laser grooving depth 0-65% adjustable
Soldering assistance method Soaking soldering belt
Soldering method Infrared soldering
Temperature change ±7.5℃
Cell Size 130～230mm 1/3, half and full cells
Busbar number 3BB-16BB
Gap Busbar gap≥13mm Gap between cell side and busbar>5mm
Soldering pallet gap ＞5.5mm
Thickness 140～200±10µm
Download PDF
