EVA/TPT Backsheet Cutting and Layup Machine

Used for automatically cut and layup second EVA film and TPT backsheet in solar panel production line

EVA/TPT Backsheet Cutting and Layup Machine
  • EVA/TPT Backsheet Cutting and Layup Machine
  • EVA/TPT Backsheet Cutting and Layup Machine
  • EVA/TPT Backsheet Cutting and Layup Machine

    • EVA/TPT Backsheet Cutting and Layup Machine

    Used for automatically cut and layup second EVA film and TPT backsheet in solar panel production line

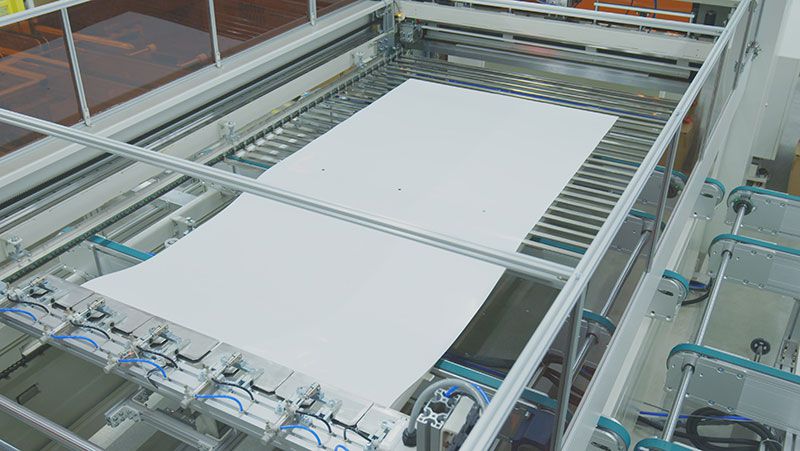

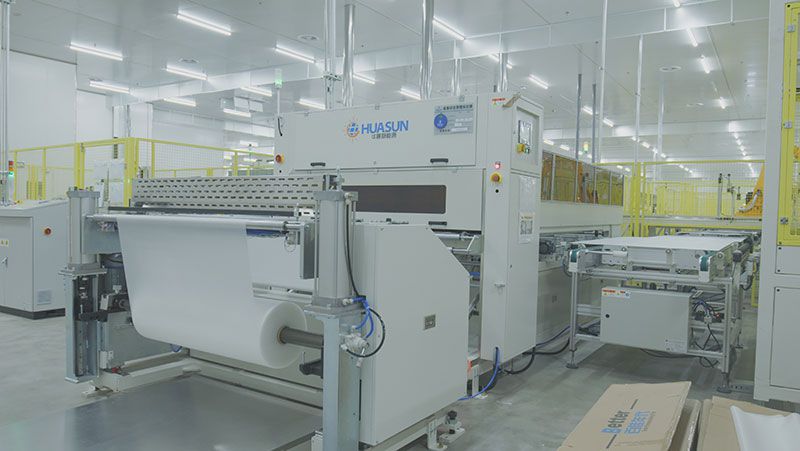

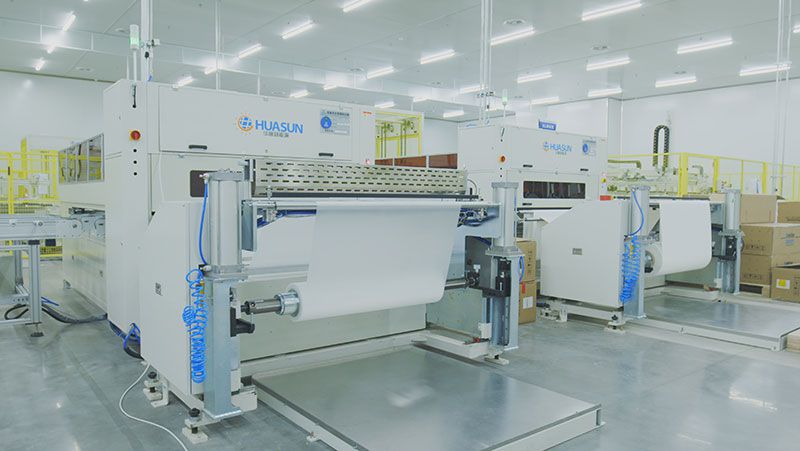

    An EVA/TPT cutting & layup machine adopts high-precision and reliable cutting and layup technologies to provide efficient solar panel production solutions to meet customers’ high requirement.

    Request a Quote
    Technical Parameters
    Item Parameters
    Panel size (1,680-2,650)*(992-1,500)mm
    Cycle time 20s
    Cutting accuracy ±1.5mm
    Laying accuracy ±1.5mm
    Overall dimensions (L*W*H) 6,000*2,320*2,000mm
    Voltage AC 380V, 3 phase
    Power 5kW
    Air pressure 0.5-0.7MPa
    Maximum material roll diameter ≤800mm
    Features
    • The standard hot melt function ensures that tailings will not fall off the machine;
    • Automatic correction, automatic detection of joints, automatic throwing and hole punching;
    • The hob cutting method prevents the material from be sticked onto the cutter to improve the cutter durability;
    • Hole punching tools can be customized according to customer requirements, such as types of flat hole, original hole and oval hole.
    Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
