Second Glass Loading & Placement Machine

Used for the production of dual-glass solar modules

Second Glass Loading & Placement Machine
  • Second Glass Loading & Placement Machine
  • Second Glass Loading & Placement Machine
  • Second Glass Loading & Placement Machine

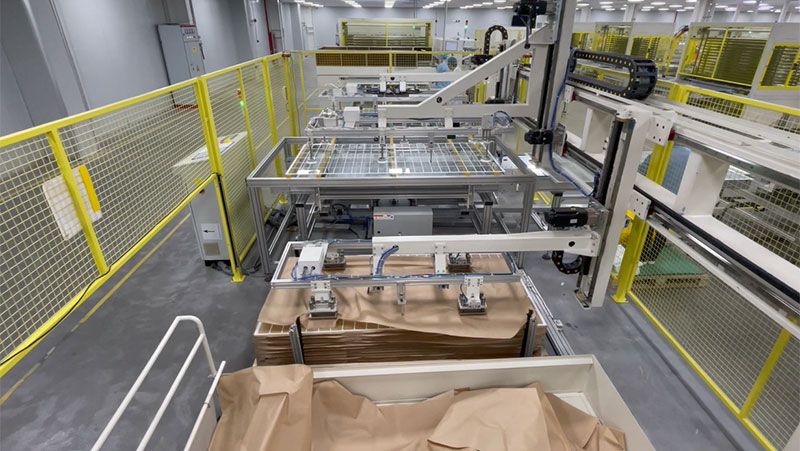

    • A second glass loading and placement machine is a high-precision dual-glass panel making machine. The glass machinery features short cycle time, high positioning precision and a small size. The loading machine can adapt to different specifications of glass and is an essential equipment for dual-glass panel production.

    Request a Quote
    Technical Parameters
    Item Parameters
    Panel size (1,680-2,650)*(992-1,500)mm
    Cycle time ≤20s
    Positioning deviation ≤±1.5mm
    Glass specifications 2-5mm
    Panel weight 40kg
    Overall dimensions (L*W*H) 5,940*3,900*3,140mm
    Voltage 3 phase 5 wire 380V, 50Hz, AC±20%
    Power ≤5kW/h
    Air pressure 0.6-0.7MPa
    Features
    • Separable paper recycling function;
    • Compatible with different specifications and models of glass;
    • The dust removal device prevents dust from falling back to the glass surface;

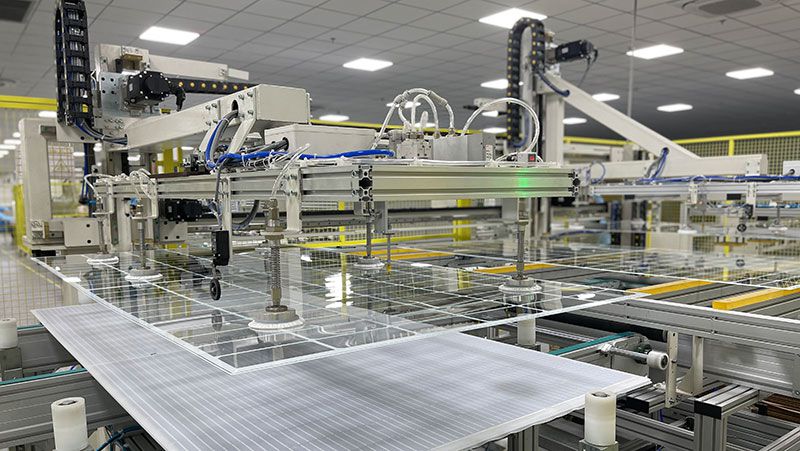

    • The Upper glass is stopped above the lower glass before placement, and both glasses are restored to be placed at the same time for precision and stability.
    Horad, as a specialist manufacturer of intelligent PV panel production line, is committed to providing complete PV module manufacturing solutions for global customers within the photovoltaic industry like solar panel manufacturers. Our portfolio includes not only automatic solar panel production lines, but also individual equipment for PV modules production, from glass loading equipment at the beginning to solar panel assembly and testing equipment at the end. If you are looking for complete solar turnkey lines for photovoltaic module manufacturing, Horad will be your reliable PV solar panel line supplier.
